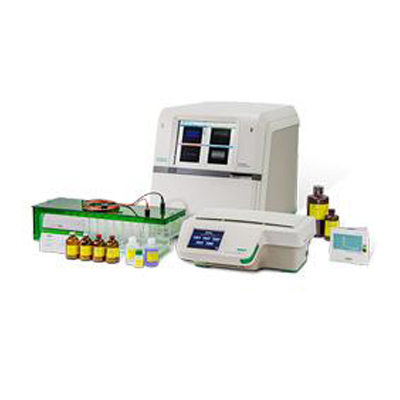

2D Electrophoresis
Complete systems for 2-D electrophoresis including the 2-D Electrophoresis Workflow, first-dimension isoelectric focusing (IEF) cells, 2-DE buffers and reagents, precast gels, and mini, midi, and large format second-dimension electrophoresis cells.
Specification:
- Input power 100 – 240 VAC, 50/60 Hz Fuse 2 ea. 2 Amp time delay 5 x 20mm
- Power input IEC 60320 standard cord set with ground
- Power output
- Voltage 0, 50-10,000 V, 1 V increments
- Current 0 – 100 µA, 1 µA intervals Power 0.1 W per lane
- Peltier platform Tray capacity 1 tray
- Temperature 10 – 25 degree C ±1.0 degree C @ max ambient 23 degree C
- 18-25 degree C ± 1.0 degree C @ max ambient 31 degree C
- Focusing trays:
- Material Polycarbonate
- IPG strip length 7, 11, 13, 17, 18, and 24 cm Capacity 1.12 IPG strips per focusing tray Channel volume 7 cm.7 ml, 11 cm.10 ml, 13 cm.11.2 ml, 17 cm.14.2 ml,
- 18 cm.15.2 ml, 24 cm.20.2 ml Rehydration/equilibration trays Material Polystyrene
- Capacity 1-12 IPG strips per tray
- IPG strip length 7, 11, 13, 17, 18, and 24 cm Channel volume 7 cm.6.8 ml, 11 cm.9.6 ml, 13 cm.10.5 ml, 17 cm.14.2 ml,
- 18 cm.16 ml, 24 cm- 19 ml Environmental requirements
- For indoor use only, at altitudes up to 6,000 ft Operate at 10.35 degree C ambient, with maximum 90% relative humidity
