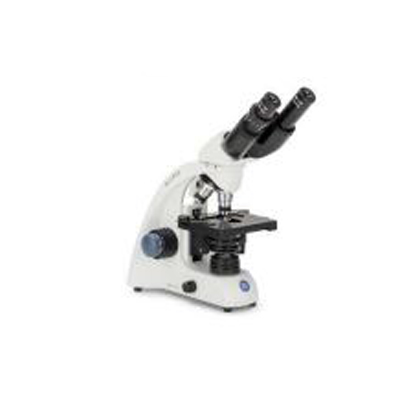

Binocular Microscope

MB.1052

Specification :

• Secured wide field eyepieces WF 10x/18 mm with fixed pointer
• Binocular 45° inclined tube, 360° rotation. Tube length 160 mm
• Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
• Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
• The S40x objective is spring-mounted
• Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
• Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm,
• 3 mm per rotation. Total travel approximately 15 mm. Friction adjustment
• Friction of focus control can be adjusted
• N.A. 1.25 condenser with iris diaphragm and filter holder
• 1 W LED illumination with intensity control, rechargeable batteries with external power
  supply/charger
• Supplied with manual and dust cover in styrofoam case

MB.1652

Specifications:

• Secured wide field eyepieces WF 10x/18 mm with fixed pointer
• Binocular 45° inclined tube, 360° rotation. Tube length 160 mm
• Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
• Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S60x N.A. 0.85 DIN 35 mm parfocal
  objectives
• The S40x objective is spring-mounted
•
  Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
• Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm, 3 mm per
  rotation. Total travel approximately 15 mm. Friction adjustment
• Friction of focus control can be adjusted
• N.A. 1.25 condenser with iris diaphragm and filter holder
• 1 W LED illumination with intensity control, rechargeable batteries with external power
  supply/charger
• Supplied with manual and dust cover in styrofoam case

MB.1152

Specifications:

• Secured wide field eyepieces WF 10x/18 mm with fixed pointer
• Binocular 45° inclined tube, 360° rotation. Tube length 160 mm
• Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
• Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25, DIN 35 mm
  parfocal objectives
• The S40x objective is spring-mounted
• Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
• Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm, 3 mm per
  rotation. Total travel approximately 15 mm. Friction adjustment
• Friction of focus control can be adjusted
• N.A.1.25 condenser with iris diaphragm and filter holder
• 1 W LED illumination with intensity control, rechargeable batteries with external power
  supply/charger
• Supplied with manual and dust cover in styrofoam case

EC.1152

Specifications:

• Secured DIN WF 10x/18 mm eyepieces
• Binocular head Siedentopf type, 30° inclined, 360° rotatable
• Forwarded quadruple revolving nosepiece on ball-bearings
• Achromatic 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per
  rotation. Total travel approximately 15 mm. Friction adjustment
• Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
•
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W NeoLED™ illumination with built-in 3 rechargeable batteries
  External power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case

EC.1652

Specifications:

• Secured DIN WF 10x/18 mm eyepieces
• Binocular head Siedentopf type, 30° inclined, 360° rotatable
• Forwarded quadruple revolving nosepiece on ball-bearings
• Achromatic 4x, 10x, S40x, S60x objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per
  rotation.
• Total travel approximately 15 mm. Friction adjustment
• Plain 130 x 125 mm stage with integrated 70 x 27 mm X-Y mechanical stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• 1 W NeoLED™ illumination with built-in 3 rechargeable batteries
  External power supply 100-240 V (CE)
• Supplied with power cord and dust cover in styrofoam case

EC.1002-P-HLED

Specifications:

• Secured DIN WF 10x/18 mm eyepiece with pointer
• Binocular head 45° inclined, 360° rotatable
• Swing-in analyzer
• Forwarded quadruple revolving nosepiece on ball-bearings
• Achromatic 4x, 10x, S40x objectives
•
  All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per
• rotation. Total travel approximately 15 mm. Friction adjustment
• Round 129 mm stage and 2 object clamps, 360°rotatable
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W H-LED illumination, light spectrum similar to the halogen light spectrum
  With 360° rotatable polarizer. Internal power supply 100-240 V
• Supplied with power cord and dust cover in styrofoam case

EC.1602-P-HLED

Specifications:

• Secured DIN WF 10x/18 mm eyepiece with pointer
• Binocular head, 45° inclined, 360° rotatable
• Swing-in analyzer
• Forwarded quadruple revolving nosepiece on ball-bearings
• Achromatic 4x, 10x, S40x, S60 oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per
  rotation.
• Total travel approximately 15 mm. Friction adjustment
• Round 129 mm stage and 2 object clamps, 360°rotatable
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W H-LED illumination, light spectrum similar to the halogen light spectrum
  With 360° rotatable polarizer.
• Internal power supply 100-240 V Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case

EC.1102-P-HLED

Specifications:

• Secured DIN WF 10x/18 mm eyepiece with pointer
• Binocular head, 45° inclined, 360° rotatable
  Swing-in analyzer
• Forwarded quadruple revolving nosepiece on ball-bearings
• Achromatic 4x, 10x, S40x, S100 oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
  Precision 12.5 μm, 2.5 mm per rotation.
• Total travel approximately 15 mm.
• Friction adjustment Round 129 mm stage and 2 object clamps, 360°rotatable
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W H-LED illumination, light spectrum similar to the halogen light spectrum
  With 360° rotatable polarizer.
• Internal power supply 100-240 V Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case

BB.4263

Specifications:

• WF 10x/18 mm DIN eyepieces
• Binocular head, Siedentopf type, 30° inclined, 360° rotatable
• Reversed quadruple revolving nosepiece on ball-bearings
• Semi plan 4x, 10x, S40x, S60x objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 2 μm, 0.4 mm per rotation.
• Total travel approximately 23 mm. Friction adjustment
• Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W NeoLED™ illumination with 3 rechargeable batteries.
• Internal power supply 100-240 V Supplied with power cord and dust cover in styrofoam case

BB.4260

Specifications:

• WF 10x/18 mm DIN eyepieces
• Binocular head, Siedentopf type, 30° inclined, 360° rotatable
• Reversed quadruple revolving nosepiece on ball-bearings
• Semi plan 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 2 μm, 0.4 mm per rotation.
• Total travel approximately 23 mm.
• Friction adjustment Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
  Height adjustable Abbe condenser N.A.
• 1.25 with iris diaphragm and filter holder 1 W NeoLED™ illumination with 3 rechargeable batteries. Internal power supply 100-240 V
  Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case

BB.4260-E

Specifications:

• WF 10x/20 mm DIN eyepieces
• Binocular head, Siedentopf type, 30° inclined, 360° rotatable
• Reversed quadruple revolving nosepiece on ball-bearings
• Semi plan 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 2 μm, 0.4 mm per rotation.
• Total travel approximately 23 mm. Friction adjustment
  Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W NeoLED™ Köhler illumination with 3 rechargeable batteries.
• Internal power supply 100-240 V Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case

BB.1152-PL

Specifications:

• WF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 μm, 0.3 mm per
  rotation.
• Total travel approximately 28 mm. Friction adjustment
• Plain 140 x 150 mm stage with 75 x 40 mm mechanical rackless stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder 3 W NeoLED™ illumination. Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover and 5 ml immersion oil in styrofoam case

BB.1152-PLi

Specifications:

• WF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1.5 μm, 0.3 mm per rotation.
• Total travel approximately 28 mm. Friction adjustment.
• Plain 140 x 150 mm stage with 75 x 40 mm mechanical rackless stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover and 5 ml immersion oil in styrofoam case

BB.1152-PLPHi

Specifications:

• WF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan phase 10x, 20x, S40x, S100x oil IOS objectives.
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1.5 μm, 0.3 mm per rotation.
• Total travel approximately 28 mm. Friction adjustment
• Plain 140 x 150 mm stage with 75 x 40 mm mechanical rackless stage
  Height adjustable Zernike Phase condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, alignment telescope and 5 ml immersion oil in
  styrofoam case

BS.1152-EPL

Specifications:

• HWF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quadruple revolving nosepiece on ball-bearings
• E-plan EPL 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1152-EPLi

Specifications:

• HWF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• E-plan EPLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1152-PLi/4N

Specifications:

• HWF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan PLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1152-PLi

Specifications:

• HWF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• Plan PLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1152-EPLPH

Specifications:

• HWF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quadruple revolving nosepiece on ball-bearings
• E-plan phase EPLPH 10x, 20x, S40x, S100x oil immersion objectives for phase contrast
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Zernike condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover and 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1152-EPLPHi

Specifications:

• HWF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• E-plan phase EPLPHi 10x, 20x, S40x, S100x oil immersion infinity corrected IOS
  objectives for phase contrast
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Zernike condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1152-PLPHi

Specifications:

• HWF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• Plan phase PLPHi 10x, 20x, S40x, S100x oil immersion infinity corrected IOS
  objectives for phase contrast
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Zernike condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

IS.1152-EPL

Specifications:

• EWF 10x/20 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
  diopter adjustment on left eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• E-plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  140 mm x 160 mm stage equipped with integrated 75 x 50 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per rotation.
• Total travel approximately 24 mm
• Rack-stop for protection of slides and objectives. Friction adjustment
• Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power
  supply (CE) iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument, which enables easy storage
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.1152-EPLi

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
  diopter adjustment on left eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• E-plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm Rack-stop for protection of slides and objectives.
• Friction adjustment Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power
  supply (CE) iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument, which enables easy storage
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.1152-PLi

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
  diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• Plan PL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm Rack-stop for protection of slides and objectives.
• Friction adjustment Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE) iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. the Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument, which enables easy storage
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.1152-PLPH

Specifications:

• EWF 10x/20 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on left eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• Plan phase PLPH 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 140 mm x 160 mm stage equipped with integrated 75 x 50 mm mechanical stage
• Height adjustable Zernike rotating N.A. 1.25 condenser with phase annuli and darkfield stop Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per rotation.
• Total travel approximately 24 mm Rack-stop for protection of slides and objectives.
• Friction adjustment Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power
  supply (CE) iCare Sensor: The illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument, which enables easy storage
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.1152-PLPHi

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
  diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• plan phase PLPHi 10x/0.25, 20x/0.40, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  Height adjustable Zernike rotating N.A. 1.25 condenser with phase annuli and darkfield stop
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per rotation.
• Total travel approximately 24 mm Rack-stop for protection of slides and objectives. Friction adjustment
• Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE) iCare Sensor: The illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument, which enables easy storage
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil, dust cover, alignment
  telescope and green filter in styrofoam case

S.3152-EPLi/3

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on one eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• E-plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per rotation.
• Total travel approximately 24 mm Rack-stop for protection of slides and objectives.
• Friction adjustment Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power
  supply (CE) 100W HBO mercury vapor fluorescence illumination attachment with 3-position. Supplied with
  fluorescence filters for Blue and Green excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.3152-PLi/3

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on left eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• Plan PLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm Rack-stop for protection of slides and objectives. Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
• 100W HBO mercury vapor fluorescence illumination attachment with 3-position.
• Supplied with fluorescence filters for Blue and Green excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

S.3152-PLFi/3

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on left eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• Plan Fluarex PLFi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm Rack-stop for protection of slides and objectives. Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
• 100W HBO mercury vapor fluorescence illumination attachment with 3-position. Supplied with
  fluorescence filters for Blue and Green excitation
• iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
  CSS – Cable Storage System.
• The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.3152-EPLi/6

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on left eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• E-plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
• Rack-stop for protection of slides and objectives. Friction adjustment
• Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power
  supply (CE) 100W HBO mercury vapor fluorescence illumination attachment with 6-position. Supplied with
  fluorescence filters for Blue and Green excitation iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.3152-PLi/6

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on left eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• Plan PLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE) 100W HBO mercury vapor fluorescence illumination attachment with 6-position.
• Supplied with
  fluorescence filters for Blue and Green excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.3152-PLFi/6

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with
• diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• Plan Fluarex PLFi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
  100W HBO mercury vapor fluorescence illumination attachment with 6-position. Supplied with
  fluorescence filters for Blue and Green excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

S.3152-EPLi/LB

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• E-plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives. Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power
  supply (CE)
  465-475 nm LED fluorescence illumination attachment with 2 positions.
• Supplied with one
  fluorescence filter set for Blue excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.3152-PLi/LB

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 47-76 mm with
• diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• Plan PLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
  rotation.
  Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
  465-475 nm LED fluorescence illumination attachment with 2 positions.
• Supplied with one
  fluorescence filter set for Blue excitation iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
  CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.3152-PLFi/LB

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• Plan Fluarex PLFi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives. Friction adjustment
• Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE) 465-475 nm LED fluorescence illumination attachment with 2 positions.
• Supplied with one fluorescence filter set for Blue excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
  CSS – Cable Storage System.
• The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.3152-EPLi/LG

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• E-plan EPLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
  Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ illumination with Internal 100-240 V power
  supply (CE)
  520-530 nm LED fluorescence illumination attachment with 2 positions.
• Supplied with one
  fluorescence filter set for Green excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
  CSS – Cable Storage System.
• The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

S.3152-PLi/LG

Specifications:

• EWF 10x/22 mm eyepieces
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• Plan PLi 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
  520-530 nm LED fluorescence illumination attachment with 2 positions.
• Supplied with one
  fluorescence filter set for Green excitation
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
  CSS – Cable Storage System.
• The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
  Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in
  styrofoam case

IS.1052-PLMi

Specifications:

• EWF 10x/20 mm eyepieces (30 mm tube)
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on both eyepiece
• Revolving quintuple reversed nosepiece on ball bearings
• Plan PLMi 5x/0.12, 10x/0.25, 20x/0,40 and 50x/0.70 IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 150 mm x 140 mm rackless stage equipped with integrated 78 x 53 mm mechanical stage.
• Supplied with metal insert and transparent glass insert
• Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
  NeoLED reflected illumination with external 100-240 V power supply (CE) and supplied with 0-
  90° polarizer
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
• Supplied with power cord, 500 mA 250 V spare fuse and dust cover in styrofoam case

IS.1052-PLAi

Specifications:

• EWF 12.5x/15 mm eyepiece, EWF 12,5/15 mm eyepiece with Walton-Bracket reticle
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on both eyepieces
• Revolving quintuple reversed nosepiece on ball bearings
• Plan PLi 4x/0.10, 10x/0.25 objectives, and Plan Phase PLPHi S40x/0.65 IOS objective
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
• 216 mm x 150 mm rackless stage equipped with integrated 79 x 52 mm mechanical stage
• Height adjustable Abbe N.A. 1.25 condenser with phase contrast annuli in slider for S40x PLPHi
  objective
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives. Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
• Supplied with power cord, 500 mA 250 V spare fuse and dust cover in styrofoam case

IS.1052-PLPOLi

Specifications:

• Pair of EWF 10x/22 mm eyepieces, One EWF 10x/20 mm eyepiece with crosshair and one with
  crosshair and micrometer
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
• diopter adjustment on both eyepieces
• Revolving quadruple reversed nosepiece on ball bearings
• Strain free Plan PLPOLi 5x/0.12, 10x/0.25, 20x/0,40 and S40x/0.65 IOS objectives for
  polarization
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  360° rotating Ø 160 mm graduated stage with 2 clamps
  Height adjustable condenser with 360° rotatable graduated polarizer
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation.
• Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
  Polarization attachment with 360° rotatable polarizer, analyzer, quartz wedge, 1L and L/4
  plates, and Bertrand lens
  iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy
• CSS – Cable Storage System. The Cable Storage System of the iScope allows the user to easily
  insert the power cable into the back of the instrument
• Supplied with power cord, 500 mA 250 V spare fuse and dust cover in styrofoam case

IS.1052-PLPOLRi

Specifications:

• Pair of EWF 10x/20 mm eyepieces, One EWF 10x/20 mm eyepiece with crosshair and one with
  crosshair and micrometer
• Binocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with
  diopter adjustment on both eyepieces
• Revolving quadruple reversed nosepiece on ball bearings
• Strain free Plan PLPOLi 5x/0.12, 10x/0.25, 20x/0,40 and S40x/0.65 IOS objectives for
  polarization
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  360° rotating Ø 160 mm graduated stage with 2 clamps
• Height adjustable condenser with 360° rotatable graduated polarizer
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1 μm, 0.2 mm per
  rotation. Total travel approximately 24 mm
  Rack-stop for protection of slides and objectives.
• Friction adjustment
  Diascopic intensity adjustable 3 W NeoLED™ Köhler illumination with Internal 100-240 V
  power supply (CE)
• Polarization attachment with 50W 12V halogen epi-illumination, 360° rotatable polarizer filter,
  analyzer, Bertrand lens, quartz wedge, 1L first red and L/4 retardation plates, sliders with
  green-blue filters and white-polarizer filters
• iCare Sensor: the illumination of the microscope automatically switches off when the
  microscopist steps away from his position, saving energy CSS – Cable Storage System at the back
• Supplied with power cord, 500 mA 250 V spare fuse and dust cover in styrofoam case
