Blood Bank Refrigerator
Blood storage requires specially designed equipment that must comply with
international standards. Trufrost Bank Refrigerators are reliable for storing blood and are ideal for blood banks, hospitals and the medical industry. They can also be used to store pharmacy and biological products in hospitals and disease prevention centers.

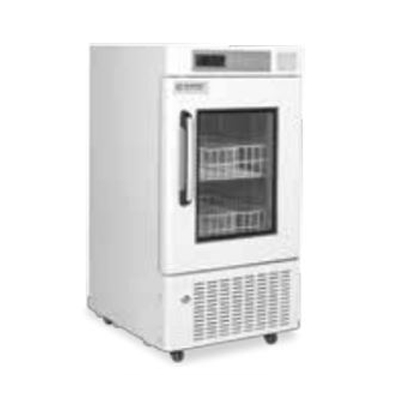

Model -MBC-4V108
Specification:
- Specifications:
Self/drawer – Shelves/2
Cooling – Forced – Air Cooling
Defrost – Auto
Refrigerant – R134a
Power Consumption(kwh/24h) – 3.8
Noise (db) – 49.6dB(A)
Ambient Temperature(C) – 10-32
Temperature range (c) – 4 ± 1 - Cooling system:
Compressor Brand Qty – Embraco/1
Sensor – PTC
Temperature Controller – Microprocessor
Display – Digital Display - Power:
Voltage/Frequency (V/Hz) – 220/50Hz
Power (W) – 160
Current (A) – 0.6 - Material:
Inside Manual – Stainless steel
Outside Manual – Color Sprayed Steel
Insulation – PUF - Size:
Capacity (L/Cu.ft) – 108/3.81 Blood Bags(450 ml) – 66
Net/Gross Weight (Kg) – 50/55
Exterior size(wxdxh)(mm) – 522 x 600 x 1050
Interior size(wxdxh)(mm) – 432 x 462 x 478
Package size(wxdxh)(mm) – 572 x 685 x 1070 - Alarm: High/Low Temperature – Y
Power Off – Y
Temperature Controller
Malfunction – Y
Backup Battery Malfunction – Y Ambient Temperature – 10 ~ 32 Backup Battery Alarm for Power
Off – 72h - Accessories
Castor Y
Outer door – 1/Heating & Foam
Glass Door inner door – 2
Test Hole QTY/Diameter – 1/25MM
Thermal Printer – Y Light – LED Temperature Recorder – optional - Certifications:
ISO9001, 13485,
14001, CE
Model - MBC-4V208
Specification:
- Specifications:
Self/drawer – Shelves/4
Cooling – Forced – Air Cooling
Defrost – Auto
Refrigerant – R134a
Power Consumption(kwh/24h) -2.22
Noise (db) – 51.2dB(A)
Ambient Temperature(C) – 10-32
Temperature range (c) – 4 ± 1 - Cooling system:
Compressor Brand Qty – Embraco/1
Sensor – PTC
Temperature Controller – Microprocessor
Display – Digital Display - Power:
Voltage/Frequency (V/Hz) – 220/50Hz
Power (W) – 200
Current (A) – 0.8 - Material:
Inside Manual – Stainless steel
Outside Manual – Color Sprayed Steel
Insulation – PUF - Size:
Capacity (L/Cu.ft) – 208/7.34 Blood Bags(450 ml) – 132
Net/Gross Weight (Kg) – 67/75
Exterior size(wxdxh)(mm) – 522 x 600 x 1550
Interior size(wxdxh)(mm) – 432 x 462 x 478
Package size(wxdxh)(mm) – 572 x 685 x 1070 - Alarm: High/Low Temperature – Y
Power Off – Y
Temperature Controller
Malfunction – Y
Backup Battery Malfunction – Y Ambient Temperature – 10 ~ 32 Backup Battery Alarm for Power
Off – 72h - Accessories
Castor Y
Outer door – 1/Heating & Foam
Glass Door inner door – 2
Test Hole QTY/Diameter – 1/25MM
Thermal Printer – Y Light – LED Temperature Recorder – optional - Certifications:
ISO9001, 13485,
14001, CE
Model - MBC-4V658
Specification:
- Specifications:
Self/drawer – Shelves/12
Cooling – Forced – Air Cooling
Defrost – Auto
Refrigerant – R134a
Power Consumption(kwh/24h) – 6.31
Noise (db) – 49.6dB(A)
Ambient Temperature(C) – 10-32
Temperature range (c) – 4 ± 1 - Cooling system:
Compressor Brand Qty – SECOP/1
Sensor – PTC
Temperature Controller – Microprocessor
Display – Digital Display - Power:
Voltage/Frequency (V/Hz) – 220/50Hz
Power (W) – 364
Current (A) – 2.42 - Material:
Inside Manual – Stainless steel
Outside Manual – Color Sprayed Steel
Insulation – PUF - Size:
Capacity (L/Cu.ft) – 658/23.23 Blood Bags(450 ml) – 360
Net/Gross Weight (Kg) – 165/195
Exterior size(wxdxh)(mm) – 1220 x 648 x 1885
Interior size(wxdxh)(mm) – 432 x 462 x 478
Package size(wxdxh)(mm) – 572 x 685 x 1070 - Alarm: High/Low Temperature – Y
Power Off – Y
Temperature Controller
Malfunction – Y
Backup Battery Malfunction – Y Ambient Temperature – 10 ~ 32 Backup Battery Alarm for Power
Off – 72h - Accessories
Castor Y
Outer door – 1/Heating & Foam
Glass Door inner door – 2
Test Hole QTY/Diameter – 1/25MM
Thermal Printer – Y Light – LED Temperature Recorder – optional - Certifications:
ISO9001, 13485,
14001, CE
Model - MBC-4V1008
Specification:
- Specifications:
Self/drawer – Drawers/12
Cooling – Forced – Air Cooling
Defrost – Auto
Refrigerant – R134a
Power Consumption(kwh/24h) – 8.53
Noise (db) – 53.6dB(A)
Ambient Temperature(C) – 10-32
Temperature range (c) – 4 ± 1 - Cooling system:
Compressor Brand Qty – SECOP/1
Sensor – PTC
Temperature Controller – Microprocessor
Display – Digital Display - Power:
Voltage/Frequency (V/Hz) – 220/50Hz
Power (W) – 513
Current (A) – 2.37 - Material:
Inside Manual – Stainless steel
Outside Manual – Color Sprayed Steel
Insulation – PUF - Size:
Capacity (L/Cu.ft) – 108/3.81 Blood Bags(450 ml) -576
Net/Gross Weight (Kg) – 256/286
Exterior size(wxdxh)(mm) – 1220 x 878 x 1885
Interior size(wxdxh)(mm) -1100 x 684 x 1325
Package size(wxdxh)(mm) – 1300 x 960 x 2080 - Alarm: High/Low Temperature – Y
Power Off – Y
Temperature Controller
Malfunction – Y
Backup Battery Malfunction – Y Ambient Temperature – 10 ~ 32 Backup Battery Alarm for Power
Off – 72h - Accessories
Castor Y
Outer door – 1/Heating & Foam
Glass Door inner door – 2
Test Hole QTY/Diameter – 1/25MM
Thermal Printer – Y Light – LED Temperature Recorder – optional - Certifications:
ISO9001, 13485,
14001, CE
1~8°C Pharmacy Refrigerators
Model -FKS 471
Specification:
Dimensions (W*D*H)mm – 595*653*1840
Net Capacity (L) – 380
Cooling System – Ventilated
Temperature Range – 1~8°C
No. of Shelves – 3 + 1
Interior Light – Yes
Compressor – ZEL/ZEL
Display – Digital Display
Digital Thermostate – Dixell
Refrigerant – R134a/R600a
Casters – 2 rear casters
Power Supply (V/HZ) – 220/50
Lock – Yes
Certifications – ISO, CE
2~8°C Pharmacy Refrigerators
Model -MVC-260
Specification:
Volume – 260L
Exterior Dimensions (W*D*H/mm) – 575*612*1695
Interior Dimensions (W*D*H/mm) – 485*480*1245
No. of Shelves – 5
Net Weight – 63
Power (W) – 165
Temp Range (°C) – 2°C ~ 8°C
Optional Accessories – Electronic Control (Touch), USB Port To
Download data, RH Display, Temp Alarm
Model -MVC-800
Specification:
Volume – 360L
Exterior Dimensions (W*D*H/mm) – 615*612*1968
Interior Dimensions (W*D*H/mm) – 525*480*1524 No. of Shelves – 6
Net Weight – 75
Power (W) – 175
Temp Range (°C) – 2°C ~ 8°C
Optional Accessories – Electronic Control (Touch), USB Port To
Download data, RH Display, Temp Alarm
Model -FKS 471
Specification:
Volume – 835L
Exterior Dimensions (W*D*H/mm) – 1190*660*2030
Interior Dimensions (W*D*H/mm) – 1100*530*1555
No. of Shelves – 8
Net Weight -142kg
Power (W) – 460W
Temp Range (°C) – 2°C ~ 8°C
Optional Accessories – Test Hole, Thermal Printer, Temp Recorder,
Waterproof Socket
