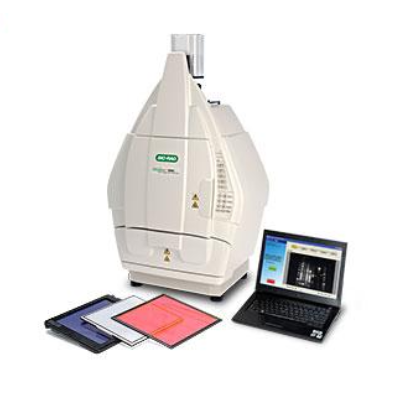

Model ChemiDoc XRS+ System
The ChemiDoc XRS+ System is based on CCD high-resolution, high-sensitivity detection technology and modular options to accommodate a wide range of samples and support multiple detection methods including fluorescence, colorimetry, densitometry, chemiluminescence, and chemifluorescence. The system is controlled by Image Lab software to optimize imager performance for fast, integrated, and automated image capture and analysis of various samples.
The system accommodates a wide array of samples, from large handcast polyacrylamide gels to small ReadyAgarose Gels and various blots. The system is an ideal accompaniment to PCR, purification, and electrophoresis systems, enabling image analysis and documentation of restriction digests, amplified nucleic acids, genetic fingerprinting, RFLPs, and protein purification and characterization.
Key benefits include:
- Gel and blot imaging and analysis are quick and accurate
- Automated, hands-off routines; no training is required
- Save and recall all the steps in the workflow for repeatable and reproducible results
- Optimize the system at setup for image data that is always accurate, reproducible, and free of imaging artifacts
- Wide range of applications with special accessories to preserve sample integrity for downstream research while ensuring user safety
- Comprehensive, automated quantitative analysis of protein and DNA samples in seconds
- Customize and organize data in reports
- Obtain publication-quality results quickly
Specifications:
Applications
- Chemiluminescence Yes
- Fluorescence* Yes
- Colorimetry/densitometry Yes
- Gel documentation Yes
Hardware Specifications
- Maximum sample size up to 28 x 36 cm
- Maximum image area up to 26 x 35 cm
- Maximum image area (For standard UV-excited gels) 25 x 26 cm
- Excitation source Epi-white light and trans-UV (302 nm) are standard (optional 365 nm lamp available); optional trans-white conversion screen and XcitaBlue™ UV/blue conversion screen available
- Illumination control 5 modes (trans-UV, epi-white, and no illumination for chemiluminescence are standard); trans white and XcitaBlue conversion screens are optional
- Detector Supercooled CCD
- Pixel size (H x V) 6.45 x 6.45 µm
- Cooling system Peltier
- Camera cooling temperature -30°C controlled
- Filter selector 3 positions (2 for filters, 1 without filter, for chemiluminescence)
- Emission filters 1 included (standard), 3 optional
- Dynamic range >4.0 orders of magnitude
- Pixel density (gray levels) 65,535
- Dynamic flat fielding Application specific, for all applications
- Instrument size (L x W x H) 36 x 60 x 96 cm
- Instrument weight 32 kg
Operating Ranges
Automation Capabilities
- Workflow automated selection Application driven, user selected or recalled by a protocol
- Workflow automated execution Controlled by a protocol via application-specific setup for image area, illumination source, filter, analysis, and reporting
- Workflow reproducibility 100% repeatability via recallable protocols; from image capture to quantitative analysis and reports
- Autofocus (patent pending) Precalibrated focus for any zoom setting or sample height
