Fluorescence Microscope
OX.3067
Specification :

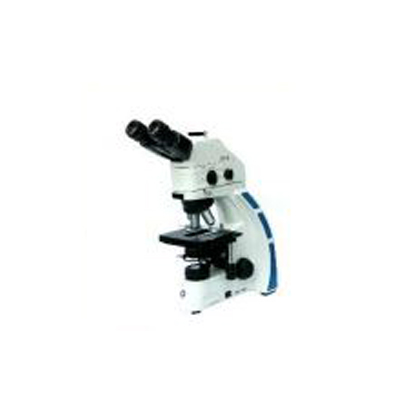

Model: OX.3237
Specifications:
HWF 10x/22 mm eyepieces
Trinocular head, 30° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 50-75 mm
Diopter adjustment on both eyepieces
Reversed quintuple revolving nosepiece on ball-bearings
Plan semi apochromatic Fluarex PLF 4x, 10x, S40x, S100x oil immersion infinity corrected IOS
objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
150 x 140 mm stage with 76 x 50 mm mechanical stage
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
rotation. Total travel approximately 28 mm
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
Condenser with slot for optional slider with darkfield or phase contrast
Diascopic 3 W NeoLED™ Köhler illumination with adjustable intensity with internal power
supply 100-240 V (CE)
Reflected 455 nm LED epi-illumination attachment with a single cube with filters for AuramineO fluorochrome and external power supply
Supplied with power cord, dust cover and 5 ml oil immersion, in styrofoam case

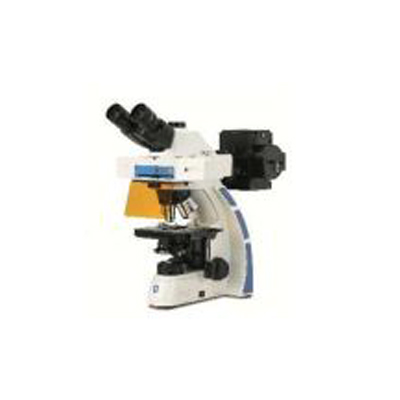

Model : BS.3153-EPLi
Specifications:
HWF 10x/22 mm eyepieces
Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
mm. Diopter adjustment on left tube
Reversed quintuple revolving nosepiece on ball-bearings
E-Plan EPLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light
throughput
Coaxial coarse and fine adjustments with 180 graduations. Precision 1.1 μm, 0.2 mm
per rotation. Total travel approximately 18 mm. Friction adjustment
Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
3 W NeoLED™ Kohler illumination. Internal power supply 100-240 V (CE)
Fluorescence attachment with 4 LED’s for 460-470 nm (blue), 520-530 nm (green),
390-400 (violet) and 360-370 nm (ultraviolet) excitation, 4 fluorescence filter sets.
Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
without rechargeable AA-type batteries

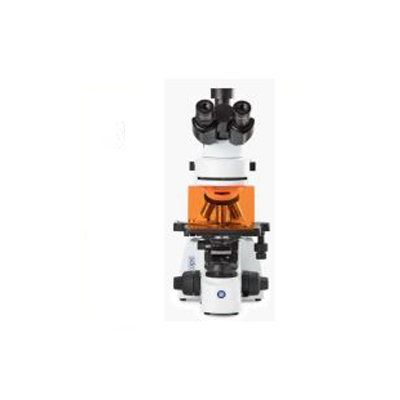

BS.3153-EPLi/HBO
Specifications:
HWF 10x/22 mm eyepieces
Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
mm. Diopter adjustment on left tube
Reversed quintuple revolving nosepiece on ball-bearings
E-Plan EPLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light
throughput
Coaxial coarse and fine adjustments with 180 graduations. Precision 1.1 μm, 0.2 mm
per rotation. Total travel approximately 18 mm. Friction adjustment
Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
3 W NeoLED™ Kohler illumination. Internal power supply 100-240 V (CE)
Fluorescence attachment with standard fluorescence filter sets for Blue and Green
excitation and 100 W HBO mercury vapor lamp.
Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
without rechargeable AA-type batteries
Model: DI.3053-PLPHFi
Specifications:
HWF 10x/25 mm eyepieces
Trinocular head, 45° inclined tubes with 100-0/20-80/0-100 beamsplitters
Interpupillary distance 47-78 mm
Diopter adjustment on both eyepieces
Reversed sextuple revolving nosepiece on ball-bearings
Semi Apochromatic Plan Phase Fluarex Apo-PLPHFi 10x/20x/S40x IOS infinity corrected
objectives with 1.2 mm cover glass correction
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
340 x 230 mm stage with 130 x 85 mm mechanical X-Y stage
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
rotation. Total travel approximately 10 mm
Rotating multi-function condenser N.A. 0,55 with iris diaphragm and filter holder. Working
distance 26 mm. Supplied with phase contrast annuli for 10x, 20x and 40x objectives and DIC
prepared. Need additional DIC prisms. The arm of condenser can be backwards tilted for
convenient access to the stage.
Lens changer with 1.5x magnification lens for intermediary magnifications without refocusing.
Standard supplied with the fluorescence filter set wheel with two standard fluorescence filters
for blue excitation EX 460-495 nm (BP) DM 505 EM 510 nm (LP) and green excitation EX 510-
550 nm (BP) DM 570 EM 575 (LP)
Transmitted 10 W NeoLED™ with adjustable intensity and internal power supply 100-240 V
(CE) and 100 W mercury vapor HBO lamp for fluorescence
Supplied with metal insert for 38 mm diameter cell culture dishes, a metal insert for 54 mm
diameter cell culture dishes and 76 x 26 mm slides, metal insert for Multiwell plates, metal
insert for Terasaki plate, blue and green filters, alignment telescope, power supply for
fluorescence 100 100W HBO mercury vapor lamp and power cord
Model: DI.3053-PLPHFi/HAL
Specifications:
HWF 10x/25 mm eyepieces
Trinocular head, 45° inclined tubes with 100-0/20-80/0-100 beamsplitters
Interpupillary distance 47-78 mm
Diopter adjustment on both eyepieces
Reversed sextuple revolving nosepiece on ball-bearings
Semi Apochromatic Plan Phase Fluarex Apo-PLPHFi 10x/20x/S40x IOS infinity corrected
objectives with 1.2 mm cover glass correction
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
340 x 230 mm stage with 130 x 85 mm mechanical X-Y stage
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
rotation. Total travel approximately 10 mm
Rotating multi-function condenser N.A. 0,55 with iris diaphragm and filter holder. Working
distance 26 mm. Supplied with phase contrast annuli for 10x, 20x and 40x objectives and DIC
prepared. Need additional DIC prisms. The arm of condenser can be backwards tilted for
convenient access to the stage.
Lens changer with 1.5x magnification lens for intermediary magnifications without refocusing.
Standard supplied with the fluorescence filter set wheel with two standard fluorescence filters
for blue excitation EX 460-495 nm (BP) DM 505 EM 510 nm (LP) and green excitation EX 510-
550 nm (BP) DM 570 EM 575 (LP)
Transmitted 100 W halogen illumination with adjustable intensity and internal power supply
100-240 V (CE) and 100 W mercury vapor HBO lamp for fluorescence
Supplied with metal insert for 38 mm diameter cell culture dishes, a metal insert for 54 mm
diameter cell culture dishes and 76 x 26 mm slides, metal insert for Multiwell plates, metal
insert for Terasaki plate, blue and green filters, alignment telescope, power supply for
fluorescence 100W HBO mercury vapor lamp and power cord
