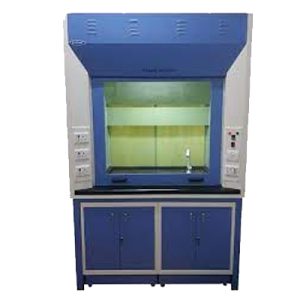

Fume Hood

Laboratory Fume Hoods are one of the most important components used to protect laboratory personnel from exposure to hazardous chemicals and agents used in the laboratory. It offers a substantial degree of protection to the users. Experimental procedures are performed with in the hood which is consistently and safely ventilated gases, vapours and fumes are contained usually pulls air and airborne contaminants in the hood through exhaust blower and duct work connected to the hood and exhausts them to the atmosphere. It controls exposure of the hood user and lab occupants to hazardous or odorous chemicals and prevent their release into the laboratory.

Model SPB-FH-F900W

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L3 X D3 X H3
  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440                      Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
  • Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.  Utilities : Gas Valve.
    MOC Wooden with Lamination

Model SPB-FH-F1200W

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L4 X D3 X H3
  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
  • Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : Wooden with Lamination

Model SPB-FH-F1500W

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L5 X D3 X H3
  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
  • Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : Wooden with Lamination

Model SPB-FH-F1800W

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L6 X D3 X H3
    Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
    Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
    Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
    Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
    Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : Wooden with Lamination

Model SPB-FH-F900G

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L3 X D3 X H3
  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
  • Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    MOC G.I. with Powder coat

Model SPB-FH-F1200G

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L4 X D3 X H3
    Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
  • Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : G.I. with Powder coat

Model SPB-FH-F1500G

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L5 X D3 X H3
    Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
    Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
    Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
    Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
    Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : G.I. with Powder coat

Model SPB-FH-F1800G

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L6 X D3 X H3
  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type
  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.
  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
    Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.
  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : G.I. with Powder coat

Model SPB-FH-F900S

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM

    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L3 X D3 X H3

  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type

  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.

  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
    Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.

  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    MOC : Stainless Steel

Model SPB-FH-F1200S

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L4 X D3 X H3

  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type

  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.

  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
    Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.

  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : Stainless Steel

Model SPB-FH-F1500S

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L5 X D3 X H3

  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440          Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type

  • Door:
    Door frame made of M.S. with safety glass 5mm thick.
    Door movement will be vertical sliding with counter weight balance arrangement.

  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
    Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.

  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : Stainless Steel

Model SPB-FH-F1800S

Specification:

  • SPECIFICATION
    Face velocity : 100 FPM
    Baffle velocity : 750 FPM
    Duct velocity : 1500 FPM
    Suction capacity : 1200 CFM
    Working Area : L6 X D3 X H3

  • Blower details:
    Volume : 1200 CFM
    Pressure : 2.5” W.G
    Powered : 1hp. Single-phase
    Motor : LHP
    RPM : 1440
    Type : Centrifugal
    Duty : Exhaust
    Model : AST 1500 F
    Balancing : Dynamically
    Impeller : Radial straight type

  • Door:
    Door frame made of M.S. with safety glass 5mm thick.

    Door movement will be vertical sliding with counter weight balance arrangement.

  • Baffle:
    Made of 4 mm thick FRP with aero dyne shape.
    Illumination: 40 watts fluorescent tube – 1no
    Ducting:
    Dimension : 150 mm O
    M.O.C : 3 mm PVC
    Quantity : 20 feet
    BEND 90 0
    Dimension : 150 mm O
    Quantity : 3nos.

  • Work Bench:
    Bottom storage cup board and drawers will be provided.
    Table top : 20 mm polished granite.
    Utilities : Gas Valve.
    M.O.C : Stainless Steel

Leads India Laboratory Equipment Company was incorporated in the year 2009 as a sole proprietorship firm at Chennai, Tamil Nadu (India). Our company is well-known for Importing, Supplying, Distributing and Trading…

Our Products

Contact us

  • D-2, Anand Apartments, No. 72/3,
    Nehru 100 Feet Road Vadapalani,
    Chennai, Tamil Nadu 600026
  • leadsindiasai@gmail.com
  • +91-9942987603
Facebook Twitter Youtube Instagram

Copyright © 2026 All Rights Reserved By Leads India Laboratory | Designed By Web Trenz Technologies.
