Autoclave
- Home
- Horizontal Autoclave

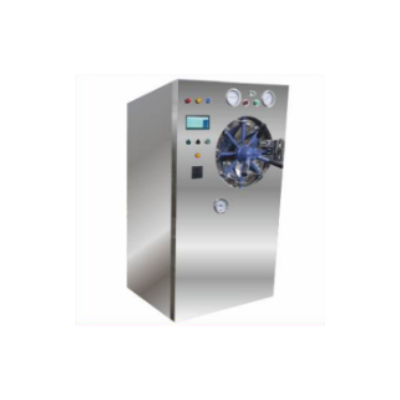

Horizontal Autoclave
- Inner Chamber : SS 316
- Stream Jacket : SS 304
- Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
- Working Temperature: 121°C / 134°C
- Door: Single door with Radical Locking System / Double Door
- Mode of Control: Multiport Valve / Automatic
- Gasket: Silicon Expansion Type
- Supply Voltage : 440 Volts – 3 Phase
Model: HC1624
Specifications:
Chamber(dia & depth (mm)) – 400*600
Volume(Ltr) – 75
Voltage – 440
Power(Kw) – 6
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
Model: HC1644
Specifications:
Chamber(dia & depth (mm)) – 400*100
Volume(Ltr) – 138
Voltage – 440
Power(Kw) – 9
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
Model: HC2036
Specifications:
Chamber(dia & depth (mm)) – 500*900
Volume(Ltr) – 176
Voltage – 440
Power(Kw) – 9
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
Model: HC2044
Specifications:
Chamber(dia & depth (mm)) – 500*1100
Volume(Ltr) – 216
Voltage – 440
Power(Kw) – 9
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
Model: HC2048
Specifications:
Chamber(dia & depth (mm)) – 500*1200
Volume(Ltr) – 235
Voltage – 440
Power(Kw) – 9
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
Model: HC2436
Specifications:
Chamber(dia & depth (mm)) – 600*900
Volume(Ltr) – 254
Voltage – 440
Power(Kw) – 12
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
Model: HC3048
Specifications:
Chamber(dia & depth (mm)) – 750*1200
Volume(Ltr) – 520
Voltage – 440
Power(Kw) – 18
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
High Speed Autoclave
Model: HS1624
Specifications:
Chamber(dia & depth (mm)) – 400*600
Volume(Ltr) – 75
Voltage – 440
Power(Kw) – 18
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
Model: HC2036
Specifications:
Chamber(dia & depth (mm)) – 500*900
Volume(Ltr) – 176
Voltage – 440
Power(Kw) – 18
Door Lock – Radial
Inner Chamber : SS 316
Stream Jacket : SS 304
Working Pressure : 1.2 Kg/cm² & 2.1 Kg/cm²
Working Temperature: 121°C / 134°C
Door: Single door with Radical Locking System / Double Door
Mode of Control: Multiport Valve / Automatic
Gasket: Silicon Expansion Type
Supply Voltage : 440 Volts – 3 Phase
