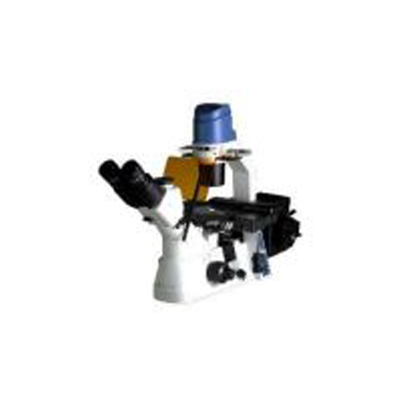

Inverted Fluorescence Microscope

Microscope

Model: LE.6200

Specification :

Standard LED light source for fluorescence with 2 wavelength bands: Blue (450-490 nm) and Green (505-545 nm) Consists of a lamphouse with a 100-240 V power supply/intensity controller. Need a specific adapter for mounting on a Euromex Delphi-X Observer, iScope and Oxion upright microscopes as well as for our Oxion Inverso and Delphi-X Inverso inverted models Other configurations are also available on special request, reference LE.6200-AB whereby A and B can be chosen between following wavelength bands: Wavelength band no 1: Ultraviolet at 365 nm with FWHM 18 nm or 330-380 nm Wavelength band no 3: Violet at 405 nm with FWHM 22 nm or 380-420 nm Wavelength band no 4: Royal blue at 450 nm with FWHM 26 nm or 440-470 nm Wavelength band no 5: Blue at 470 nm with FWHM 24 nm or 450-490 nm Wavelength band no 6: Green at 525 nm with FWHM 29 nm or 505-545 nm

Model: OX.2253-PLF

Specifications:

Pair HWF 10x/22 mm eyepieces
Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece
Reversed quintuple revolving nosepiece on ball-bearings
Plan Fluarex PL 10x, 20x, S40x IOS objectives.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
250 x 230 mm stage with 120 x 78 mm mechanical stage
Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic insert
for 35 mm diameter Petri dish holder, a 76×26 mm slide holder with 54mm Petri dish holder
and a Multiwell holder with 65 mm Petri dish holder
Coaxial coarse and fine adjustments. Precision 2 μm, 0.2 mm per rotation. Total travel
approximately 25 mm
Supplied with metallic insert for 35 mm Petri dishes and Terasaki holder.
N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
Transmitted 100 W mercury vapor fluorescence and 5 W NeoLED™ brightfield illumination
with internal power supply 100-240 V (CE) and UV protection shield
Supplied with 2 filter blocks with standard filter sets:
– Blue: EX465-495 DM505LP EM515-558,
– Green: EX500-600 DM600LP EM605-665
Supplied with power cord and transportation box

Model : OX.2253-PLPHF

Specifications:

Pair HWF 10x/22 mm eyepieces
Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece
Reversed quintuple revolving nosepiece on ball-bearings
Plan Fluarex 10x and plan phase Fluarex PLPH 20x, S40x IOS infinity corrected objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
250 x 230 mm stage with 120 x 78 mm mechanical stage
Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic insert
for 35 mm diameter Petri dish holder, a 76×26 mm slide holder with 54mm Petri dish holder
and a Multiwell holder with 65 mm Petri dish holder
Coaxial coarse and fine adjustments. Precision 2 μm, 0.2 mm per rotation. Total travel
approximately 25 mm
N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
Supplied with slider with phase contrast annuli and green filter
Transmitted 100 W mercury vapor fluorescence and 5 W NeoLED™ brightfield/phase contrast
illumination with internal power supply 100-240 V (CE) and UV protection shield
Supplied with 2 filter blocks with standard filter sets:
– Blue: EX465-495 DM505LP EM515-558,
– Green: EX500-600 DM600LP EM605-665
Supplied with power cord and transportation box

Model: OX.2453-PLPHF

Specifications:

Pair HWF 10x/22 mm eyepieces
Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece
Reversed quintuple revolving nosepiece on ball-bearings
Plan Fluarex 10x and plan phase Fluarex PLPH 20x, S40x IOS infinity corrected objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
250 x 230 mm stage with 120 x 78 mm mechanical stage
Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic insert
for 35 mm diameter Petri dish holder, a 76×26 mm slide holder with 54mm Petri dish holder
and a Multiwell holder with 65 mm Petri dish holder
N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
Coaxial coarse and fine adjustments. Precision 2 μm, 0.2 mm per rotation. Total travel
approximately 25 mm
Supplied with slider with phase contrast annuli and green filter
Transmitted 100 W mercury vapor fluorescence and 5 W NeoLED™ brightfield/phase contrast
illumination with internal power supply 100-240 V (CE) and UV protection shield
Supplied with 2 filter blocks with standard filter sets:
Supplied with 3 filter blocks with standard filter sets:
– Blue: EX465-495 DM505LP EM515-558,
– Green: EX520-600 DM600LP EM605-665
– UV1: EX361-381 D415LP EM435-495
Supplied with power cord and transportation box

Model: OX.2453-PLF

Specifications:

Pair HWF 10x/22 mm eyepieces
Trinocular head, 45° inclined tubes. Tubes can be positioned in upper or lower positions
Interpupillary distance 54-75 mm. Diopter adjustment on left eyepiece
Reversed quintuple revolving nosepiece on ball-bearings
Plan Fluarex PL 10x, 20x, S40x IOS objectives.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
250 x 230 mm stage with 120 x 78 mm mechanical stage
Supplied with glass insert with 30 mm hole, a metallic insert with 25 mm hole, a metallic insert
for 35 mm diameter Petri dish holder, a 76×26 mm slide holder with 54mm Petri dish holder
and a Multiwell holder with 65 mm Petri dish holder
Coaxial coarse and fine adjustments. Precision 2 μm, 0.2 mm per rotation. Total travel
approximately 25 mm
N.A. 0.30 condenser with iris diaphragm and filter holder, working distance 72 mm
Transmitted 100 W mercury vapor fluorescence and 5 W NeoLED™ brightfield illumination
with internal power supply 100-240 V (CE) and UV protection shield
Supplied with 3 filter blocks with standard filter sets:
– Blue: EX465-495 DM505LP EM515-558,
– Green: EX520-600 DM600LP EM605-665
– UV1: EX361-381 D415LP EM435-495
Supplied with power cord and transportation box

Model: DI.3053-PLPHFi

Specifications:

HWF 10x/25 mm eyepieces
Trinocular head, 45° inclined tubes with 100-0/20-80/0-100 beamsplitters
Interpupillary distance 47-78 mm
Diopter adjustment on both eyepieces
Reversed sextuple revolving nosepiece on ball-bearings
Semi Apochromatic Plan Phase Fluarex Apo-PLPHFi 10x/20x/S40x IOS infinity corrected
objectives with 1.2 mm cover glass correction
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
340 x 230 mm stage with 130 x 85 mm mechanical X-Y stage
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
rotation. Total travel approximately 10 mm
Rotating multi-function condenser N.A. 0,55 with iris diaphragm and filter holder. Working
distance 26 mm. Supplied with phase contrast annuli for 10x, 20x and 40x objectives and DIC
prepared. Need additional DIC prisms. The arm of condenser can be backwards tilted for
convenient access to the stage.
Lens changer with 1.5x magnification lens for intermediary magnifications without refocusing.
Standard supplied with the fluorescence filter set wheel with two standard fluorescence filters
for blue excitation EX 460-495 nm (BP) DM 505 EM 510 nm (LP) and green excitation EX 510-
550 nm (BP) DM 570 EM 575 (LP)
Transmitted 10 W NeoLED™ with adjustable intensity and internal power supply 100-240 V
(CE) and 100 W mercury vapor HBO lamp for fluorescence
Supplied with metal insert for 38 mm diameter cell culture dishes, a metal insert for 54 mm
diameter cell culture dishes and 76 x 26 mm slides, metal insert for Multiwell plates, metal
insert for Terasaki plate, blue and green filters, alignment telescope, power supply for
fluorescence 100 100W HBO mercury vapor lamp and power cord

Model: DI.3053-PLPHFi/HAL

Specifications:

HWF 10x/25 mm eyepieces
Trinocular head, 45° inclined tubes with 100-0/20-80/0-100 beamsplitters
Interpupillary distance 47-78 mm
Diopter adjustment on both eyepieces
Reversed sextuple revolving nosepiece on ball-bearings
Semi Apochromatic Plan Phase Fluarex Apo-PLPHFi 10x/20x/S40x IOS infinity corrected
objectives with 1.2 mm cover glass correction
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
340 x 230 mm stage with 130 x 85 mm mechanical X-Y stage
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per
rotation. Total travel approximately 10 mm
Rotating multi-function condenser N.A. 0,55 with iris diaphragm and filter holder. Working
distance 26 mm. Supplied with phase contrast annuli for 10x, 20x and 40x objectives and DIC
prepared. Need additional DIC prisms. The arm of condenser can be backwards tilted for
convenient access to the stage.
Lens changer with 1.5x magnification lens for intermediary magnifications without refocusing.
Standard supplied with the fluorescence filter set wheel with two standard fluorescence filters
for blue excitation EX 460-495 nm (BP) DM 505 EM 510 nm (LP) and green excitation EX 510-
550 nm (BP) DM 570 EM 575 (LP)
Transmitted 100 W halogen illumination with adjustable intensity and internal power supply
100-240 V (CE) and 100 W mercury vapor HBO lamp for fluorescence
Supplied with metal insert for 38 mm diameter cell culture dishes, a metal insert for 54 mm
diameter cell culture dishes and 76 x 26 mm slides, metal insert for Multiwell plates, metal
insert for Terasaki plate, blue and green filters, alignment telescope, power supply for
fluorescence 100W HBO mercury vapor lamp and power cord
