LCD Screen Micropscope

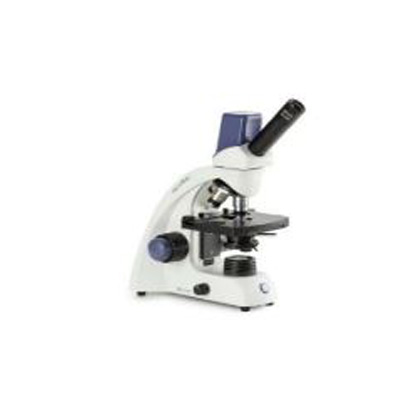

MB.1155-1
Specification :
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer Monocular 45° inclined tube, 360° rotation.
- Tube length 160 mm Built-in 1.3 MP CMOS camera with USB-2 interface, 1271 x 952 pixels Supplied with ImageFocus software
- Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25 oil DIN 35 mm
parfocal objectives - The S40x and S60x objective are spring-mounted
- Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
- Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. Friction adjustment - Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power - supply/charger. Paint with Antibacterial Protection Layer Supplied with manual and dust cover in styrofoam case
MB.1155-1
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
Built-in 1.3 MP CMOS camera with USB-2 interface, 1271 x 952 pixels - Supplied with ImageFocus software
Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops - Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25 oil DIN 35 mm
parfocal objectives - The S40x and S60x objective are spring-mounted
Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage - Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger. Paint with Antibacterial Protection Layer - Supplied with manual and dust cover in styrofoam case
MB.1155-5
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
Built-in 5 MP CMOS camera with USB-2 interface, 1271 x 952 pixels - Supplied with ImageFocus software
Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops - Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25 oil DIN 35 mm
parfocal objectives - The S40x and S60x objective are spring-mounted
Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage - Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. Friction adjustment - Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger. Paint with Antibacterial Protection Layer - Supplied with manual and dust cover in styrofoam case

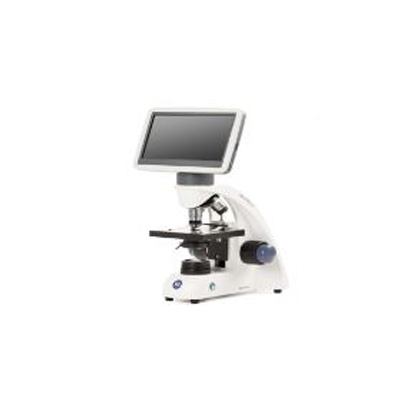

MB.1001-LCD
Specifications:
- 5.6 inch LCD screen with 640 x 480 pixels with built-in SD card for saving of images in jpeg
format. - Video resolution of 640 x 480 pixels, saving in AVI format
Nosepiece for 3 objectives. Ball-bearing mechanism and click-stops - Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
- The S40x objective is spring-mounted
Square stage 105 x 105 mm with two object clamps - Coaxial coarse and fine adjustments with 200 graduations.
- Precision 15 μm, 3 mm per
rotation. - Total travel approximately 15 mm. Friction adjustment
Friction of focus control can be adjusted
Fixed lens N.A. 0.65 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger
Paint with - Antibacterial Protection Layer
Supplied with USB-2 cable, manual and dust cover in styrofoam case
MB.1051-LCD
Specifications:
- 5.6 inch LCD screen with 640 x 480 pixels with built-in SD card for saving of images in jpeg
format. - Video resolution of 640 x 480 pixels, saving in AVI format
Nosepiece for 4 objectives. - Ball-bearing mechanism and click-stops
Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives - The S40x objective is spring-mounted
Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage - Coaxial coarse and fine adjustments with 200 graduations.
- Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. Friction adjustment - Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger
Paint with Antibacterial - Protection Layer
Supplied with USB-2 cable, manual and dust cover in styrofoam case
BB.4200
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
Monocular head, 45° inclined, 360° rotatable
Reversed quadruple revolving nosepiece on ball-bearings
Semi plan 4x, 10x, S40x objectives - All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm, 0.4 mm per
rotation. - Total travel approximately 23 mm. Friction adjustment
Plain 120 x 120 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries
Internal power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer - Supplied with power cord and dust cover in styrofoam case
BB.4200-LCD
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
7 inch HD LCD screen, 1920×1080 pixels, SD card for images and video - Reversed quadruple revolving nosepiece on ball-bearings
Semi plan 4x, 10x, S40x objectives - All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm, 0.4 mm per
rotation. - Total travel approximately 23 mm. Friction adjustment
Plain 120 x 120 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries
Internal power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer - Supplied with power cord and dust cover in styrofoam case
BB.4220
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
Monocular head, 45° inclined, 360° rotatable - Reversed quadruple revolving nosepiece on ball-bearings
Semi plan 4x, 10x, S40x objectives - All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm, 0.4 mm per
rotation. Total travel approximately 23 mm. - Friction adjustment
130 x 130 mm stage with 70 x 28 mm mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries
Internal power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer - Supplied with power cord and dust cover in styrofoam case
BB.4220-LCD
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
7 inch HD LCD screen, 1920×1080 pixels, SD card for images and video - Reversed quadruple revolving nosepiece on ball-bearings
Semi plan 4x, 10x, S40x objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput - Coaxial coarse and fine adjustments with 200 graduations.
- Precision 2 μm,
0.4 mm per rotation. Total travel approximately 23 mm. - Friction adjustment
130 x 130 mm stage with 70 x 28 mm mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries
Internal power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer - Supplied with power cord and dust cover in styrofoam case
BB.4240
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
Reversed quadruple revolving nosepiece on ball-bearings
Semi plan 4x, 10x, S40x, S60 objectives - All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Coaxial coarse and fine adjustments with 200 graduations. Precision 2 μm, 0.4 mm per
rotation. Total travel approximately 23 mm. - Friction adjustment
130 x 130 mm stage with 70 x 28 mm mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries - Internal power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer - Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case
BB.4250
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
Monocular head, 45° inclined, 360° rotatable - Reversed quadruple revolving nosepiece on ball-bearings
Semi plan 4x, 10x, S40x, S100x oil immersion objectives
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput - Coaxial coarse and fine adjustments with 200 graduations.Precision 2 μm, 0.4 mm per
rotation. - Total travel approximately 23 mm. Friction adjustment
130 x 130 mm stage with 70 x 28 mm mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries
Internal power supply 100-240 V (CE)
Paint with Antibacterial Protection Layer - Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case
