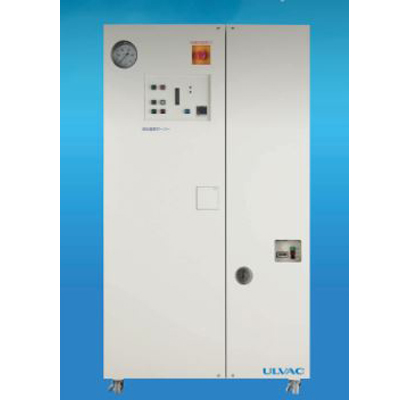

Liquid Nitrogen Plant
EMP -07A
Specification:
- LN2 Production Capacity -8g / day (60Hz),6g /day (50Hz)
- LN2 Storage Capacity – 40g
- Dimensions – w600xD750xH1628mm
- Weight – Approx 220kg
- Power supply – 100VAC phase
Approx 1.2/1.4kw (50/60 Hz) - Breaking capacity -20A
- Cooling water – Not needed (Air cooled )
EMP -07W
Specification:
- LN2 Production Capacity -8g / day (60Hz),6g /day (50Hz)
- LN2 Storage Capacity – 40g
- Dimensions – w600xD750xH1628mm
- Weight – Approx 230kg
- Power supply – 100VAC phase
Approx 1.2/1.4kw (50/60 Hz) - Breaking capacity -20A
- Cooling water – Entrance – 5-35C Flow rate – 2-5 min pressure < 0.8MPa
EMP -20W
Specification:
- LN2 Production Capacity -20g / day (60Hz),19g /day (50Hz)
- LN2 Storage Capacity – 80g
- Dimensions – w930xD740xH1661mm
- Weight – Approx 340kg
- Power supply – 200VAC3 phase
Approx 3.3/4.1kw (50/60 Hz) - Breaking capacity -30A
- Cooling water – Entrance – 10-30C Flow rate -3-6 min pressure < 0.8MPa
EMP -14A
Specification:
- LN2 Production Capacity -14g / day (60Hz),14g /day (50Hz)
- LN2 Storage Capacity – 40g
- Dimensions – w600xD750xH1688mm
- Weight – Approx 235kg
- Power supply – 200VAC 3phase
Approx 1.7/2.0kw (50/60 Hz) - Breaking capacity -20A
- Cooling water – Not needed (Air cooled )
EMP -14W
Specification:
- LN2 Production Capacity -14g / day (60Hz),14g /day (50Hz)
- LN2 Storage Capacity – 40g
- Dimensions – w600xD750xH1688mm
- Weight – Approx 230kg
- Power supply – 200VAC 3phase
Approx 1.6/1.9kw (50/60 Hz) - Breaking capacity -20A
- Cooling water – Entrance – 5-35C Flow rate – 2-56 min pressure < 0.8MPa
