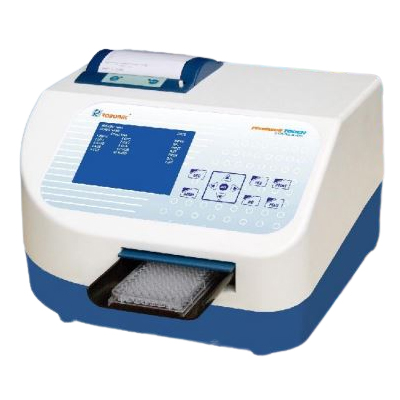

Microplate Reader
Microplate reader is an Automatic ELISA plate analyser with user friendly and sophisticated on board software. It is a stand alone system for all routine immunoassays, Biochemicals, hormones and drug levels. Its versatile and extensive software supports most of the calculations required for interpretation of results. It is economical, reliable and high precision machine.
Technical Specifications:
- Human Machine Interface TOUCH PANEL !KEYPAD
- Linear measurement range 0.000 to 3.000 Absorbance Units(A)
- Photometirc Accuracy ± 2% or 0.005 whichever is higher, from 0 to 1.5 A
3%from 1.5 A to 3.0A
Dill t <0.005 Mw - Photometric Lmeanty 2.5 A
- Optical measurement 8 Channel
- Filters
Type of Filter Narrow band Interference
Wave Length 405nm, 450nm, 492nm, 630 nm 8 Two Optional
Half Bandwidth 10 nm m 2nm
Selection Automatic by Stepper P,totor - Light Source Tungsten halogen lamp
- Warm up time 90 seconds (built • in)
- Display 0′ Graphics LCD. Negative Blue. STN
- Curve Plotting Graphical Representation on Printer
- Plate Carrier Movement Precisely through the stepper motor
- Printer Built in Thermal Printer 52 Columns
- Memory 64 KB Non Volatile RAM Battery backup
supportingl25 open channels - Analysis Mode Absorbance Cut – off
Multi – Standard % Absorbance - RS232 Serial Port 2400 baud. 8 data. 1 stop. no parity bits/ USB
- Power
Wattage 50 Watts
Voltage 115.230 Volts ± 10%. 50! 60 Hz. - Operating Position On horizontal flat. rigid and vibration free surface
- Operating Conditions
Temperature . From + 18° C to 35° C
Relative Humidity . up to 80 % - Storage Conditions
Temperature From -10° C to 35° C
Relative Humidity up to 80 % - Enclosure ABS Fire Retardant
- Size (cm) 36 X 36 X 22 Oxbxh)
- Weight 10 KgS
