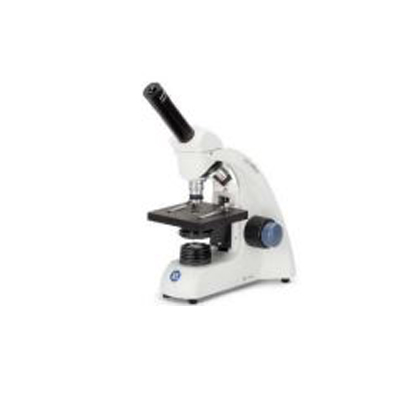

Monocular Microscope
BS.1151-EPL
bScope series - Brightfield
bScope monocular microscope, HWF 10x/20 mm eyepieces and quadruple nosepiecewith E-plan EPL 4/10/S40/S100x oil objectives, 131 x 152/197 mm stage with
integrated mechanical 77 x 36 mm rackless X-Y stage. 3 W NeoLED™ illumination and
integrated power supply. Supplied without rechargeable batteries
Specification :
- HWF 10x/20 mm eyepieces Monocular head, Siedentopf type, 30° inclined tubes.
- Interpupillary distance 48-75 mm.
- Diopter adjustment on left tube Reversed quadruple revolving nosepiece on ball-bearings E-plan EPL 4x, 10x, S40x, S100x oil immersion objectives All optics are anti-fungus treated and anti-reflection coated for maximum light throughput Coaxial coarse and fine adjustments with 180 graduations.
- Precision 1.1 μm, 0.2 mm per rotation.
- Total travel approximtely 18 mm.
- Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder 3 W NeoL D™ illumination.
- Internal power supply 100-240 V (CE) Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and without rechargeable AA-type batteries.
MB.1001
MicroBlue
Specifications:
- Secured wide field eyepiece WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Nosepiece for 3 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
- The S40x objective is spring-mounted
- Square stage 105 x 105 mm with two object clamps
Coaxial coarse and fine adjustments with 200 graduations. - Precision 15 μm, 3 mm per
rotation. - Total travel approximately 15 mm. Friction adjustment
- Friction of focus control can be adjusted
- Fixed lens N.A. 0.65 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1051
Specifications:
- Secured wide field eyepiece WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
- The S40x objective is spring-mounted
- Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
- Coaxial coarse and fine adjustments with 200 graduations.
- Precision 15 μm,
3 mm per rotation. - Total travel approximately 15 mm. Friction adjustment
- Friction of focus control can be adjusted
- N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1651
Specifications:
- Secured wide field eyepiece WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S60x N.A. 0.85 DIN 35 mm parfocal
objectives - The S40x objective is spring-mounted
- Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
- Coaxial coarse and fine adjustments with 200 graduations.
- Precision 15 μm, 3 mm per
rotation. - Total travel approximately 15 mm. Friction adjustment
- Friction of focus control can be adjusted
- N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1151
Specifications:
- Secured wide field eyepiece WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25 DIN 35 mm
parfocal objectives - The S40x objective is spring-mounted
- Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
- Coaxial coarse and fine adjustments with 200 graduations.
- Precision 15 μm, 3 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Friction of focus control can be adjusted - N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1005-1
Specifications:
- Secured wide field eyepiece WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 1.3 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
- Supplied with ImageFocus software
Nosepiece for 3 objectives. - Ball-bearing mechanism and click-stops
Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives - The S40x objective is spring-mounted
- Square stage 105 x 105 mm with two object clamps
Coaxial coarse and fine adjustments with 200 graduations. - Precision 15 μm, 3 mm per
rotation. - Total travel approximately 15 mm. Friction adjustment
Friction of focus control can be adjusted
Fixed lens N.A. 0.65 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1005-5
Specifications:
- Secured wide field eyepiece WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 5 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
- Supplied with ImageFocus software
- Nosepiece for 3 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
- The S40x objective is spring-mounted
- Square stage 105 x 105 mm with two object clamps
Coaxial coarse and fine adjustments with 200 graduations. - Precision 15 μm, 3 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Friction of focus control can be adjusted
Fixed lens N.A. 0.65 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1055-1
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 1.3 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
- Supplied with ImageFocus software
- Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
The S40x objective is spring-mounted - Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
Coaxial coarse and fine adjustments with 200 graduations. - Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. - Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1055-5
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 5 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
- Supplied with ImageFocus software
- Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
The S40x objective is spring-mounted - Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
- Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm,
3 mm per rotation. - Total travel approximately 15 mm. Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1655-1
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 1.3 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
- Supplied with ImageFocus software Nosepiece for 4 objectives.
- Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S60x N.A. 0.85 DIN 35 mm parfocal
objectives - The S40x and S60x objective are spring-mounted
- Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
- Coaxial coarse and fine adjustments with 200 graduations.
- Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. - Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1655-5
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 5 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
Supplied with ImageFocus software - Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S60x N.A. 0.85 DIN 35 mm parfocal
objectives - The S40x and S60x objective are spring-mounted
- Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
Coaxial coarse and fine adjustments with 200 graduations. - Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. - Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1155-1
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 1.3 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
Supplied with ImageFocus software - Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
- Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25 oil DIN 35 mm
parfocal objectives - The S40x and S60x objective are spring-mounted
Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
Coaxial coarse and fine adjustments with 200 graduations. - Precision 15 μm,
3 mm per rotation. Total travel approximately 15 mm. - Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
MB.1155-5
Specifications:
- Secured wide field eyepieces WF 10x/18 mm with fixed pointer
- Monocular 45° inclined tube, 360° rotation. Tube length 160 mm
- Built-in 5 MP CMOS camera with USB-2 interface, 1271 x 952 pixels
Supplied with ImageFocus software - Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops
Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25 oil DIN 35 mm - parfocal objectives
The S40x and S60x objective are spring-mounted - Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
Coaxial coarse and fine adjustments with 200 graduations. - Precision 15 μm,
3 mm per rotation. - Total travel approximately 15 mm.
- Friction adjustment
Friction of focus control can be adjusted
N.A. 1.25 condenser with iris diaphragm and filter holder
1 W LED illumination with intensity control, rechargeable batteries with external power
supply/charger - Supplied with manual and dust cover in styrofoam case
EC.1001
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Plain 123 x 119 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with internal power supply 100-240 V (CE) - Supplied with power cord and dust cover in styrofoam case
EC.1101
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head 45° inclined, 360° rotatable
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S100x oil immersion objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. - Total travel approximately 15 mm. Friction adjustment
Plain 123 x 119 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with internal power supply 100-240 V (CE) - Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case
EC.1601
Specifications:
- Monocular head 45° inclined, 360° rotatable
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S60x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Plain 123 x 119 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with internal power supply 100-240 V (CE) - Supplied with power cord and dust cover in styrofoam case
EC.1051
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head 45° inclined, 360° rotatable
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. Friction adjustment - Plain 123 x 128 mm stage with integrated X-Y mechanical stage
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with built-in 3 rechargeable batteries
External power supply 100-240 V (CE) - Supplied with power cord and dust cover in styrofoam case
EC.1151
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head 45° inclined, 360° rotatable
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S100x oil immersion objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
- Coaxial coarse and fine adjustments with 200 graduations.
- Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with built-in 3 rechargeable batteries
External power supply 100-240 V (CE) - Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case
EC.1651
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head 45° inclined, 360° rotatable
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S60x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. - Total travel approximately 15 mm. Friction adjustment
Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with built-in 3 rechargeable batteries
External power supply 100-240 V (CE) - Supplied with power cord, dust cover in styrofoam case
EC.1005
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Built-in 3.2 MP CMOS camera with USB-2 interface, 2048 x 1635 pixels
- Supplied with ImageFocus software
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Plain 123 x 119 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with internal power supply 100-240 V (CE) - Supplied with power cord and dust cover in styrofoam case
EC.1105
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Built-in 3.2 MP CMOS camera with USB-2 interface, 2048 x 1635 pixels
- Supplied with ImageFocus software
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S100x oil immersion objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Plain 123 x 119 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with internal power supply 100-240 V (CE) - Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case
EC.1605
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Built-in 3.2 MP CMOS camera with USB-2 interface, 2048 x 1635 pixels
Supplied with ImageFocus software - Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S60x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Plain 123 x 119 mm stage with 2 object clamps
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination. Internal power supply 100-240 V (CE) - Supplied with power cord and dust cover in styrofoam case
EC.1001-P-HLED
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head 45° inclined, 360° rotatable
- Swing-in analyzer
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. - Total travel approximately 15 mm. Friction adjustment
Round 129 mm stage and 2 object clamps, 360°rotatable - Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W H-LED illumination, light spectrum similar to the halogen light spectrum
With 360° rotatable polarizer. Internal power supply 100-240 V - Supplied with power cord and dust cover in styrofoam case
EC.1601-P-HLED
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Swing-in analyzer
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S60 oil immersion objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. Total travel approximately 15 mm. - Friction adjustment
Round 129 mm stage and 2 object clamps, 360°rotatable - Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W H-LED illumination, light spectrum similar to the halogen light spectrum
With 360° rotatable polarizer. - Internal power supply 100-240 V
Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case
EC.1101-P-HLED
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Swing-in analyzer
- Forwarded quadruple revolving nosepiece on ball-bearings
- Achromatic 4x, 10x, S40x, S100 oil immersion objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 12.5 μm, 2.5 mm per
rotation. - Total travel approximately 15 mm.
- Friction adjustment
Round 129 mm stage and 2 object clamps, 360°rotatable
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W H-LED illumination, light spectrum similar to the halogen light spectrum
With 360° rotatable polarizer. - Internal power supply 100-240 V
Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case
BB.4200
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Reversed quadruple revolving nosepiece on ball-bearings
- Semi plan 4x, 10x, S40x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 2 μm, 0.4 mm per
rotation. - Total travel approximately 23 mm. Friction adjustment
- Plain 120 x 120 mm stage with 2 object clamps
- Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries - Internal power supply 100-240 V (CE)
Supplied with power cord and dust cover in styrofoam case
BB.4220
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Reversed quadruple revolving nosepiece on ball-bearings
- Semi plan 4x, 10x, S40x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 2 μm, 0.4 mm per
rotation. - Total travel approximately 23 mm. Friction adjustment
Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries - Internal power supply 100-240 V (CE)
Supplied with power cord and dust cover in styrofoam case
BB.4240
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Reversed quadruple revolving nosepiece on ball-bearings
- Semi plan 4x, 10x, S40x, S60x objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 2 μm,
0.4 mm per rotation. - Total travel approximately 23 mm.
- Friction adjustment
Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage - Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries - Internal power supply 100-240 V (CE)
Supplied with power cord and dust cover in styrofoam case
BB.4250
Specifications:
- Secured DIN WF 10x/18 mm eyepiece with pointer
- Monocular head, 45° inclined, 360° rotatable
- Reversed quadruple revolving nosepiece on ball-bearings
- Semi plan 4x, 10x, S40x, S100x oil immersion objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Coaxial coarse and fine adjustments with 200 graduations. - Precision 2 μm, 0.4 mm per
rotation. Total travel approximately 23 mm. - Friction adjustment
Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
1 W LED illumination with 3 rechargeable batteries - Internal power supply 100-240 V (CE)
Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case
BS.1151-EPL
Specifications:
- HWF 10x/20 mm eyepieces
- Monocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
mm. - Diopter adjustment on left tube
- Reversed quadruple revolving nosepiece on ball-bearings
- E-plan EPL 4x, 10x, S40x, S100x oil immersion objectives
- All optics are anti-fungus treated and anti-reflection coated for maximum light
throughput Coaxial coarse and fine adjustments with 180 graduations. - Precision 1.1 μm, 0.2 mm
per rotation. - Total travel approximately 18 mm.
- Friction adjustment
Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
3 W NeoLED™ illumination. - Internal power supply 100-240 V (CE)
Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
without rechargeable AA-type batteries
BS.1151-PL
Specifications:
- HWF 10x/20 mm eyepieces
- Monocular head, Siedentopf type, 30° inclined tubes.
- Interpupillary distance 48-75
mm. - Diopter adjustment on left tube Reversed quadruple revolving nosepiece on ball-bearings
E-plan high contract PL 4x, 10x, S40x, S100x oil immersion objectives - All optics are anti-fungus treated and anti-reflection coated for maximum light
throughput
Coaxial coarse and fine adjustments with 180 graduations. - Precision 1.1 μm, 0.2 mm
per rotation. - Total travel approximately 18 mm. Friction adjustment
Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
3 W NeoLED™ illumination. Internal power supply 100-240 V (CE) - Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
without rechargeable AA-type batteries
