Scanning Electron Microscope(SEM)

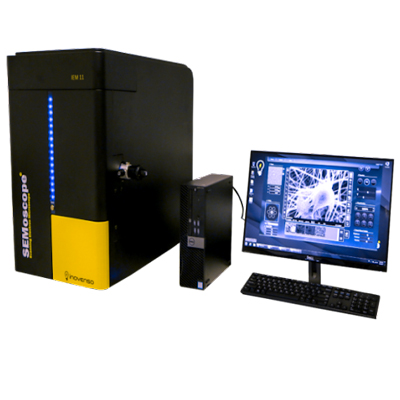

Model IEM 11
Features:
- Magnification up to 150,000x
- Combined SE and BSE images
- Low energy consumption
- Intuitive user interface
- High quality images (5 nm resolution)
- Easy navigation with the “navigation mode”
- Precise control wth a joystick and the “driving mode”
Specification:
- Detector: SE Detector
- Stage: Auto Stage (X: 35 mmY: 35 mm,T: 0 to 45 o ) Manual Stage (Z: 5 to 50 mm)
- Image Shift: X, Y, R(Rotation)
- Operating System: Microsoft Windows 7
- Dimensions (mm): 400(W) x 600(L) x 550(H)
- Dimensions (inch): 15,74(W) x 23,62(L) x 21,65(H)
- Weight: 85(kgs) – 187(lbs)
- Magnification: x20 ~ x100,000 (Efficient: ~ x50,000)
- Acc Voltage: 1 ~ 30 kV (1kV increments)
- Electron Gun: Tungsten Filament (W)
MODEL IEM 11+
Features:
- High quality images (5 nm resolution)
- Low energy consumption
- Intuitive user interface
- Magnification up to 150,000x
- Combined SE and BSE images
- Easy navigation with the “navigation mode”
- Precise control with a joystick and the “driving mode”
- Oxford: 130 eV at Mnk, C(6) ~ U(92) / EDAX:133 eV at Mnk, Be(4) ~ U(92)
Specification:
- Detector: SE and BSE Detectors
- EDS: Oxford: 130 eV at Mnk, C(6) ~ U(92) EDAX: 133 eV at Mnk, Be(4) ~ U(92)
- Magnification: x20 ~ x150,000 (Efficient: ~x80,000)
- Acc Voltage: 1 ~ 30 kV (1 kV increments)
- Electron Gun: Tungsten Filament (W)
- Image Shift: Auto Stage (X: 35 mm, Y: 35 mm, T: 0 to 45o) Manual Stage (Z: 5 to 50mm)
- Operating System: Microsoft Windows 7
- Weight: 95(kgs)- 210(lbs)
- Dimensions (mm): 400(W) x 600(L) x 550(H)Dimensions (inch): 15,74(W) x 23,62(L) x 21,65(H)
