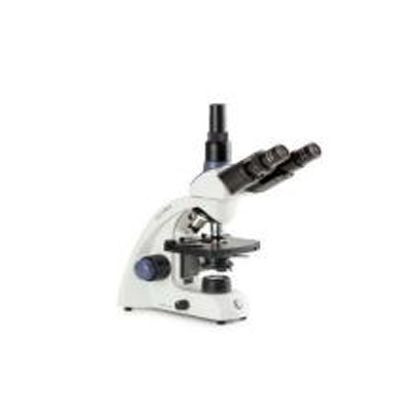

Trinocular Microscope

MB.1053

Specification :

• Secured wide field eyepieces WF 10x/18 mm with fixed pointer
• Trinocular 45° inclined tube, 360° rotation. Tube length 160 mm Nosepiece for 4 objectives.
• Ball-bearing mechanism and click-stops
• Achromatic 4x N.A. 0.10, 10x N.A. 0.25 and S40x N.A. 0.65 DIN 35 mm parfocal objectives
• The S40x objective is spring-mounted
• Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
• Coaxial coarse and fine adjustments with 200 graduations.
• Precision 15 μm, 3 mm per rotation.
• Total travel approximately 15 mm.
• Friction adjustment Friction of focus control can be adjusted N.A. 1.25 condenser with iris diaphragm and filter holder
• 1 W LED illumination with intensity control, rechargeable batteries with external power
  supply/charger
• Supplied with manual and dust cover in styrofoam case

MB.1653

Specifications:

• Secured wide field eyepieces WF 10x/18 mm with fixed pointer
• Trinocular 45° inclined tube, 360° rotation.
• Tube length 160 mmNosepiece for 4 objectives.
• Ball-bearing mechanism and click-stops
• Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S60x N.A. 0.85 DIN 35 mm parfocal objectives
• The S40x and S60x objectives are spring-mounted
• Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
• Coaxial coarse and fine adjustments with 200 graduations.
• Precision 15 μm, 3 mm per rotation.
• Total travel approximately 15 mm.
• Friction adjustment Friction of focus control can be adjusted
• N.A. 1.25 condenser with iris diaphragm and filter holder
  1 W LED illumination with intensity control, rechargeable batteries with external power supply/charger
• Supplied with manual and dust cover in styrofoam case

MB.1153

Specifications:

• Secured wide field eyepieces WF 10x/18 mm with fixed pointer
• Trinocular 45° inclined tube, 360° rotation.
• Tube length 160 mm Nosepiece for 4 objectives.
• Ball-bearing mechanism and click-stops
• Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A.1.25 oil DIN 35 mm parfocal objectives
• The S40x and S100x objectives are spring-mounted
• Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage Coaxial coarse and fine adjustments with 200 graduations.
• Precision 15 μm, 3 mm per rotation.
• Total travel approximately 15 mm.
• Friction adjustment Friction of focus control can be adjusted
  N.A. 1.25 condenser with iris diaphragm and filter holder
  1 W LED illumination with intensity control, rechargeable batteries with external power
  supply/charger
• Supplied with manual and dust cover in styrofoam case

EC.1153

Specifications:

• Secured DIN WF 10x/18 mm eyepieces
• Trinocular head Siedentopf type, 30° inclined, 360° rotatable
• Forwarded quadruple revolving nosepiece on ball-bearings
• Achromatic 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 12.5 μm, 2.5 mm per rotation.
• Total travel approximately 15 mm.
• Friction adjustment Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• 1 W NeoLED™ illumination with built-in 3 rechargeable batteries External power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case

EC.1653

Specifications:

• Secured DIN WF 10x/18 mm eyepieces
• Trinocular head Siedentopf type, 30° inclined, 360° rotatable
• Forwarded quadruple revolving nosepiece on ball-bearings
• Achromatic 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 12.5 μm, 2.5 mm per rotation.
• Total travel approximately 15 mm.
• Friction adjustment Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• 1 W NeoLED™ illumination with built-in 3 rechargeable batteries External power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case

BB.4243

Specifications:

• WF 10x/18 mm DIN eyepieces
• Trinocular head, Siedentopf type, 30° inclined, 360° rotatable
• Reversed quadruple revolving nosepiece on ball-bearings
• Semi plan 4x, 10x, S40x, S60x objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 2 μm, 0.4 mm per rotation.
• Total travel approximately 23 mm. Friction adjustment
• Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W NeoLED™ illumination with 3 rechargeable batteries. Internal power supply 100-240 V
• Supplied with power cord and dust cover in styrofoam case

BB.4243

Specifications:

• WF 10x/18 mm DIN eyepieces
• Trinocular head, Siedentopf type, 30° inclined, 360° rotatable
• Reversed quadruple revolving nosepiece on ball-bearings
• Semi plan 4x, 10x, S40x, S60x objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 2 μm, 0.4 mm per rotation.
• Total travel approximately 23 mm. Friction adjustment
• Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  1 W NeoLED™ illumination with 3 rechargeable batteries. Internal power supply 100-240 V
• Supplied with power cord and dust cover in styrofoam case

BB.4253-E

Specifications:

• WF 10x/20 mm DIN eyepieces
• Trinocular head, Siedentopf type, 30° inclined, 360° rotatable
• Reversed quadruple revolving nosepiece on ball-bearings
• Semi plan 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 2 μm, 0.4 mm per rotation.
• Total travel approximately 23 mm.
• Friction adjustment Plain 130 x 130 mm stage with 70 x 28 mm mechanical stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
• 1 W NeoLED™ Köhler illumination with 3 rechargeable batteries. Internal power supply 100-
  240 V
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case

BB.1153-PL

Specifications:

• WF 10x/20 mm eyepieces
• Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1.5 μm, 0.3 mm per rotation.
• Total travel approximately 28 mm. Friction adjustment
• Plain 140 x 150 mm stage with 75 x 40 mm mechanical rackless stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination. Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover and 5 ml immersion oil in styrofoam case

BB.1153-PLi

Specifications:

• WF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes.
• Interpupillary distance 48-75 mm
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1.5 μm, 0.3 mm per rotation.
• Total travel approximately 28 mm. Friction adjustment
• Plain 140 x 150 mm stage with 75 x 40 mm mechanical rackless stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination. Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover and 5 ml immersion oil in styrofoam case

BB.1153-PLPHi

Specifications:

• WF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes.
• Interpupillary distance 48-75 mm
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan phase 10x, 20x, S40x, S100x oil IOS objectives.
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
  Coaxial coarse and fine adjustments with 200 graduations.
• Precision 1.5 μm, 0.3 mm per rotation.
• Total travel approximately 28 mm. Friction adjustment
• Plain 140 x 150 mm stage with 75 x 40 mm mechanical rackless stage
• Height adjustable Zernike Phase condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination. Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, alignment telescope and 5 ml immersion oil in
  styrofoam case

BS.1153-EPL

Specifications:

• HWF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quadruple revolving nosepiece on ball-bearings
• E-plan EPL 4x, 10x, S40x, S100x oil immersion objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination.
• Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1153-EPLi

Specifications:

• HWF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• E-plan EPLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination. Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1153-PLi/4N

Specifications:

• HWF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan PLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1153-PLi/4N

Specifications:

• HWF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quadruple revolving nosepiece on ball-bearings
• Plan PLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
• Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination. Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1153-EPLPH

Specifications:

• HWF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quadruple revolving nosepiece on ball-bearings
• E-plan phase EPLPH 10x, 20x, S40x, S100x oil immersion objectives for phase contrast
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
• Height adjustable Zernike condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ illumination. Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1153-EPLPHi

Specifications:

• HWF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• E-plan phase EPLPHi 10x, 20x, S40x, S100x oil immersion infinity corrected IOS
  objectives for phase contrast
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Zernike condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.1153-PLPHi

Specifications:

• HWF 10x/20 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• Plan phase PLPHi 10x, 20x, S40x, S100x oil immersion infinity corrected IOS objectives for phase contrast
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Height adjustable Zernike condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE)
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.3153-EPLi

Specifications:

• HWF 10x/22 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• E-Plan EPLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm. Friction adjustment
• Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination.
• Internal power supply 100-240 V (CE) Fluorescence attachment with 4 LED’s for 460-470 nm (blue), 520-530 nm (green),
  390-400 (violet) and 360-370 nm (ultraviolet) excitation, 4 fluorescence filter sets.
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.3153-EPLi

Specifications:

• HWF 10x/22 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• E-Plan EPLi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Abbe condenser N.A. 1.25 with iris diaphragm and filter holder 3 W NeoLED™ Kohler illumination. Internal power supply 100-240 V (CE)
• Fluorescence attachment with 4 LED’s for 460-470 nm (blue), 520-530 nm (green),
  390-400 (violet) and 360-370 nm (ultraviolet) excitation, 4 fluorescence filter sets.
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries

BS.3153-PLFi

Specifications:

• HWF 10x/22 mm eyepieces
• Trinocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75
  mm.
• Diopter adjustment on left tube
• Reversed quintuple revolving nosepiece on ball-bearings
• Plan Fluarex PLFi 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
• All optics are anti-fungus treated and anti-reflection coated for maximum light
  throughput Coaxial coarse and fine adjustments with 180 graduations.
• Precision 1.1 μm, 0.2 mm per rotation.
• Total travel approximately 18 mm.
• Friction adjustment Plain 131 x 152/197 mm rackless stage with 77 x 36 mm mechanical rackless stage
  Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  3 W NeoLED™ Kohler illumination. Internal power supply 100-240 V (CE)
• Fluorescence attachment with 4 LED’s for 460-470 nm (blue), 520-530 nm (green),
  390-400 (violet) and 360-370 nm (ultraviolet) excitation, 4 fluorescence filter sets
• Supplied with power cord, dust cover, 5 ml immersion oil in styrofoam case and
  without rechargeable AA-type batteries
