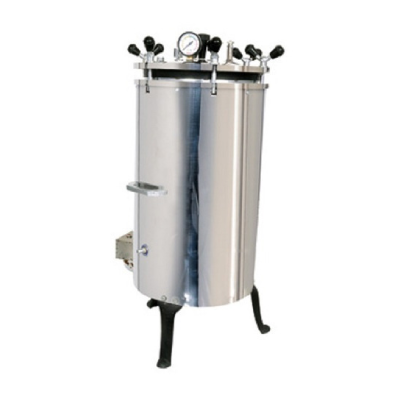

Vertical Autoclave
Vertical Autoclave, high pressure electrically heated steam sterilizer is used for sterilization of hospital
surgical instruments, dressing material, linen, rubber, plastic materials by mean of saturated steam under
pressure of 20 psi. Autoclave is also used in all scientific laboratories, educational institutions
and industries.
Construction:
Double walled construction with boiler made of stainless steel thick sheet. Inner and Outer chamber is fully made of Stainless Steel Sheet. Lid is made of stainless steel thick plate and is tightened all-round by wing nut locking system. Sterilizer is hydraulically tested upto 40 psi as safety measures and fitted with Neoprene Rubber Gaskets to ensure tight sealing.
Double walled construction with boiler made of stainless steel thick sheet. Inner and Outer chamber is fully made of Stainless Steel Sheet. Lid is made of stainless steel thick plate and is tightened all-round by wing nut locking system. Sterilizer is hydraulically tested upto 40 psi as safety measures and fitted with Neoprene Rubber Gaskets to ensure tight sealing.
Autoclaves are fitted with pressure gauge, steam release cock, spring-loaded safety valve that can set at
any selected point from 15 psi to 20 psi +/- 3 psi and drain outlet. An ISI marked immersion type suitable
rating heating element heats the water and steam to desired temperature and pressure.
Supplied complete unit with PEDAL LIFTING DEVICE, Perforated S.S. Basket, Wing Nut opener, Cord and
plug to work on 220 Volts, 50 Hz AC supply
Maximum Pressure : 30 psi Regular working pressure : 15 psi
Maximum Pressure : 30 psi Regular working pressure : 15 psi
Model: HSAV22
Specifications:
- Inner Chamber Dia & Depth – 250*450mm
- Capacity – 22liter
- Load – 2.0kw
- Inner & Outer Stainless Steel Price/Each (Rs.) – 21,000.00
Model: HSAV40
Specifications:
- Inner Chamber Dia & Depth – 250*450mm
- Capacity – 40liter
- Load – 3kw
- Inner & Outer Stainless Steel Price/Each (Rs.) – 27,500.00
Model: HSAV50
Specifications:
- Inner Chamber Dia & Depth – 250*450mm
- Capacity – 50liter
- Load – 3kw
- Inner & Outer Stainless Steel Price/Each (Rs.) – 33,500.00
Model: HSAV90
Specifications:
- Inner Chamber Dia & Depth – 250*450mm
- Capacity – 90liter
- Load – 4kw
- Inner & Outer Stainless Steel Price/Each (Rs.) – 49,000.00
Model: HSAV187
Specifications:
- Inner Chamber Dia & Depth – 250*450mm
- Capacity – 187liter
- Load – 5kw
- Inner & Outer Stainless Steel Price/Each (Rs.) – 54,000.00
Model: HSAV187
Specifications:
- Inner Chamber Dia & Depth – 250*450mm
- Capacity – 187liter
- Load – 6.5kw
- Inner & Outer Stainless Steel Price/Each (Rs.) – 1,25,000.00
