Viscometer
Ease of use, flexibility, reliable performance and quality of service have made Brookfield Laboratory Viscometers favorites all over the world.
Each of our standard Laboratory Viscometers/ Rheometers are supplied with an internal spring used to calculate the viscosity of a material. These springs have different measuring capabilities:
- LV is for low viscosity materials and can measure the thinnest materials. Typical examples include inks, oils, and solvents.
- RV is for medium viscosity materials than those measured with an LV torque. Typical examples include creams, food, and paints.
- HA is for higher viscosity materials than those measured with an RV torque. Typical examples include gels, chocolate and epoxies.
- HB is for even higher viscosity materials than those measured with an HA torque spring. Typical examples include asphalt, caulking compounds
DV1
Specification:
- User Configuration display
– user choice of most important parameter is displayed in larger font size
– Choice of static or scrolling - Display mode
Displayed info
-Viscosity(cp,p.mpas)
-%Torque
-Speed Spindle
-temperature(cdeg or f deg) - Choice of Multiple Languages
English,french,german,Portuguese,Russian, Spanish - UsB pc interface – for use with optional wingather SQ software
- 18speeds
Provide great range capablity - Optional RTD Temperature
- Direct access
to time measurement function(time to torque,time to temperature,time to stop) - Accuracy +-1.0% of range
- Repeatability +-0.2%
- Temperature off set
capability to +-5C - Automatic Range Calculation
– full scale range (FSR) at 100%
-maximum viscosity measured with spindle/speed combination - Simplified user intreface
for more direct access to features - Printing to dymo printer capability
- Stylish model G base
DV E
Specification:
- No Calculations Required
– Direct reading of viscosity in Cp or mPas - Displayed info
-Viscosity(cp,p.mpas)
-%Torque
-Speed Spindle
-temperature(cdeg or f deg) - Easy to use
-Flip a switch
Turn a knob - Spindle/speed selection
- Flip to speed
turn th knob
choose the RPM - Flip to spindle
Turn the knob
Choose the spindle - Auto range
push for determining full scale
range (FSR viscosity) - 18 speeds for complete range cabapility
- Accuracy +-1.0% of range
- Repeadability +-0.2%
DV 2T
Specification:
- 5-inch full color Touch screen Display
-New user interface
-Enhanced Controls
-Real time trend indicator
-supports multiple languages - Display info
-Viscosity(cp,or mpas)
-temperature(cdeg or f deg)
-shear rate/stress
-%Torque
-Speed Spindle
-step program status - Enhanced security
-customizable user access
-date and time startup file
-Password access
-Portable Log-in settings - Built-in options
-Timed tests
-Data averaging
-Programable QC Limits/alarms
-Customizable speed spindle lists
-Test based user instructions
-on Screen data comparison - Auto range showing
-Maximum viscosity measured with spindle/speed combination - USB PC Interface provides optional computer control and automatic data gatahering capability
- Convenient Bubble level
- Download Custom test programs
with PG flash software - Accuracy +-1.0% of range
-dispalyed wuith test data - Repeatablity +-02%
- Built in RTD Temperature Probe
- Internal Data storage- 150mb

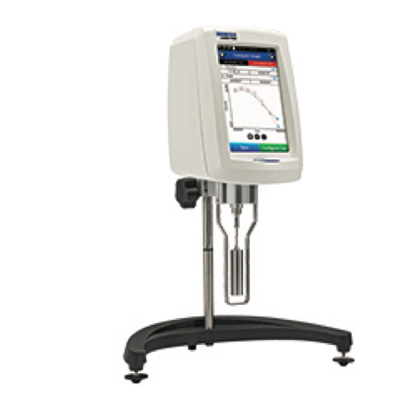

DV 3T
Specification:
- 7-inch Full Color Touch Screen Display – New User Interface – Enhanced Controls – Real Time Graphing – Supports Multiple Languages
- Displayed Info: – Viscosity (cP or mPa•s) – Temperature (°C or °F) – Shear Rate/Stress – % Torque – Speed/Spindle – Step Program Status – Math Model Calculations for data
- Built-in math models analysis in stand-alone mode. E.g. Casson, Bingham, Power Law, Thix Index
- Enhanced Security – Customizable User Access – Date and Time Stamp File – Password Access – Portable Log-in Settings
- Built-In Options – Math Modeling – Temperature Control – Yield Tests – Programmable QC Limits/Alarms
- Analyze characteristics such as yield stress, flow curves (mixing, pumping, spraying), leveling and recovery
- USB PC Interface provides optional computer control and automatic data collection capability
- Convenient Bubble Level
- Integrated Temperature Control with connection to Brookfield TC series Baths and AP controller or Brookfield Thermosel System.
- Stand-alone programming or download custom test programs with PG Flash Software.
- Built-in RTD Temperature Probe
- Accuracy: ±1.0% of range – Displayed with test data
- Repeatability: ±0.2%
DV 3T
Specification:
- New User Interface
– Keypad control
– Sharp viewing screen
for close up or
distance viewing - No Calculations Required
– Direct reading of
viscosity - Displayed Info:
– Viscosity
(cP, P, mPa•s or Pa•s)
– % Torque
– Speed/Spindle - Easy-to-Use
- Range:
Push for determining
full scale range (FSR)
viscosity - 18 Speeds
for complete range
capability - Bubble Level
conveniently located
for easy adjustment - Accuracy: ±1.0% of range
- Repeatability: ±0.2%
VTE 250
Specification:
- Continuous linear output signal (4-20 mA) easy-to-read
indicator - Selectable readout in cP, cup seconds or other units
- Simple to change viscosity range no tools or
recalibration required - Options: plastic sample chamber, solenoid control
valve, test stand with mounting brackets and additional
spindles
AST-100
Specification:
- No moving parts to wear, bind or contact process
materials and no narrow gaps to trap product - Simple, clean-in-place design rugged 316
stainless steel construction - Continuous, reliable output 4-20 mA, RS232 or
RS485 - Saves you money while increasing your
production - Optional configurations food grade and
explosion-proof designs (Nema 4, Nema 7, ATEX
or Sanitary Configurations)
TT-100
Specification:
- Continuous linear output signal (4-20 mA)
- Concentric cylinder geometry for viscosity values
at defined shear rates using couette rheology - Capable of a wide range of pressures,
temperatures, viscosities, flow and shear rates - Can be operated at shear rates of 511 sec-1 for
American Petroleum Institute (TT-100) - Easy to check and maintain calibration
TT 200
Specification:
- Continuous linear output signal (4-20 mA)
elminates “grab” sampling - Flange mountable directly into tank or in pipeline
tee. - Capable of a wide range of pressures,
temperatures, viscosities, flow and shear rates - Optional configurations include NEMA 7
explosion-proof (FM approved), 12V or 24V DC
operations, readout indicator and variable speed
motor
PV 100
Specification:
- Continuous linear output signal (4-20 mA) with defined
shear measurement - Optimizes product quality through automatic control
- Minimum operator involvement helps reduce
production and operating costs - Capable of a wide range of pressures, temperatures,
viscosities, flow and shear rates - Continuous flow through the measuring gap of the
cylinder system. - Immersion version available for use with open
containers or closed vessels at high operating
pressures. - Variety of immersion probes and special lengths
available to accommodate a wide sample range. - Optional KS9800 controller displays viscosity,
measuring range, temperature, shear rate and shear
stress. Calculates and displays temperature correction.
KV 100
Specification:
- Continuous measurement eliminates need for “grab”
sampling and allows for prediction of final product flow
properties - Instrument resists pressure and temperature
fluctuations through the use of gear pump and magnet
coupling - 4-20 mA output signal provides a variety of display and
control capabilities - Accurate, repeatable measurements under variable
conditions - Displays measurement data and calculation options
capable with optional accessories - Custom viscosity ranges up to 500 mPas (cP) available
